T-2000
Click on the image to enlarge
Interested in this product? Get in touch now »
About T-2000

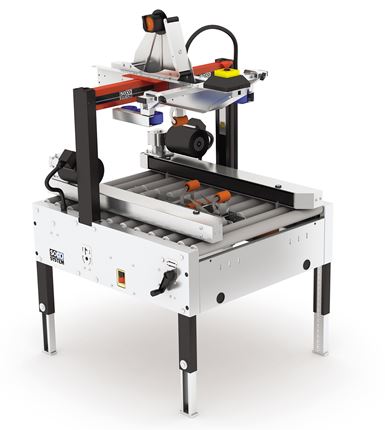

T-2000
Product Code: APM T-2000
T-2000 Uniform New case sealer generation.
Seals the top and bottom of the case.
The machine can be adjusted from both sides.
The machine is easy to clean and resistant to vapour and moisture.
Basic models
The compact machine is available in two basic models T-2000 and T-2000 Maxi. T-2000 Maxi is suited for use in indsutries handling large cases.
The machine is very easy to adjust for current case size and adjustment can be carried out from both sides.
Easy change of tape and dispensers.
Compact design.
Easy and economical maintenance.
Specification:
T-2000 5-5-9, Case Dimensions Max mm (LxWxH) Infinte x 520 x 520 Min mm (LxWxH) 140 x 90 x 90, Tape overlap 70mm as standard optional 50mm, Tape Width 38 - 50mm as standard, optional 25-30 and 50-75mm. Side Drive Height Standard 50mm, optional 80mm. Working Height Max / Min 900 x 500mm. Weight 150 KGS, Capacity 30/min. Available electrics single phase, 3 phase 50-60 hz, connected load 0.3 kw, Tape Diameter 385mm.
T-2000 5-8-9, Case Dimensions Max mm (LxWxH) Infinte x 515 x 820 Min mm (LxWxH) 140 x 90 x 90, Tape overlap 70mm as standard optional 50mm, Tape Width 38 - 50mm as standard, optional 25-30 and 50-75mm. Side Drive Height Standard 50mm, optional 80mm. Working Height Max / Min 900 x 500mm. Weight 155 KGS, Capacity 30/min. Available electrics single phase, 3 phase 50-60 hz, connected load 0.3 kw, Tape Diameter 385mm.
T-2000 Maxi 7-5-9, Case Dimensions Max mm (LxWxH) Infinte x 720 x 520 Min mm (LxWxH) 140 x 130 x 100, Tape overlap 70mm as standard optional 50mm, Tape Width 50-75mm as standard, optional 25-30 and 38-50mm. Side Drive Height Standard 80mm, optional 50mm. Working Height Max / Min 900 x 500mm. Weight 160 KGS, Capacity 30/min. Available electrics single phase, 3 phase 50-60 hz, connected load 0.3 kw, Tape Diameter 385mm.
T-2000 Maxi 7-8-9, Case Dimensions Max mm (LxWxH) Infinte x 720 x 820 Min mm (LxWxH) 155 x 130 x 100, Tape overlap 70mm as standard optional 50mm, Tape Width 50-75mm as standard, optional 25-30 and 38-50mm. Side Drive Height Standard 80mm, optional 50mm. Working Height Max / Min 900 x 500mm. Weight 165 KGS, Capacity 30/min. Available electrics single phase, 3 phase 50-60 hz, connected load 0.3 kw, Tape Diameter 385mm.
